Ultimate Noise-Free Acoustic Gym Flooring

Our 63mm Acoustic Gym Flooring Tiles are the ultimate solution for complete soundproofing in both commercial gyms and home fitness spaces. This is the thickest floor tile in our Acoustic Decibel Collection, these HD rubber mats effectively isolate noise and vibration from repetitive weight drops, high impact workout activity and gym machines.

AS INSTALLED IN

Gym Soundproofing Platform

Whether you're training in a Home Gym or want to create a productive and noise-free gym environment for your customers, our 63mm Acoustic Gym Tile system creates a sound barrier which significantly reduces noise transfer and vibration from heavy weight drops, operating gym machines and high impact workouts which include jumping, free weights, tyres and sleds.

High Density Rubber Gym Flooring

Constructed from recycled HD rubber, the high-density composition allows for superior soundproofing, absorbing sound energy and reducing airborne noise in all areas including reverberant spaces and open-plan buildings.

Product Highlights

Optimal Protection & Stability

Designed for high to extreme Weightlifting, our 63mm Acoustic Gym Tiles can tolerate the toughest of workouts and the heaviest weights with a Maximum Weight Drop of up to 350kg. The slip resistant top layer and high density core absorbs impact, cushions the body and safeguards against damage to your floors and equipment.

For maximum stability, the tiles have a studded undercarriage which also acts as a drainage channel for any moisture to easily pass through.

Professional Finish

All of our Decibel Acoustic Gym Tiles are made from superior quality recycled SBR rubber in a uniform Black finished with a bevelled edge for a polished and professional look.

Suitable For:

Olympic Weightlifting
Bodybuilding
Sled Pulling/Tire Pulling
CrossFit
Plyometric Workouts
Very High to Extreme Intensity Strength Training Workouts
Parkour/Gymnastics/Cheerleading

Applications

Home Gyms
Commercial Gyms & Fitness Centres
Sports Centres & Specialist Sports Clubs
CrossFit Gyms
Free Weight Areas/Functional Fitness/Cardiovascular Studios
Personal Training Areas/PT Studios

Product
Dimensions	1000mm x 1000mm
Thickness	63mm
Shape	Square

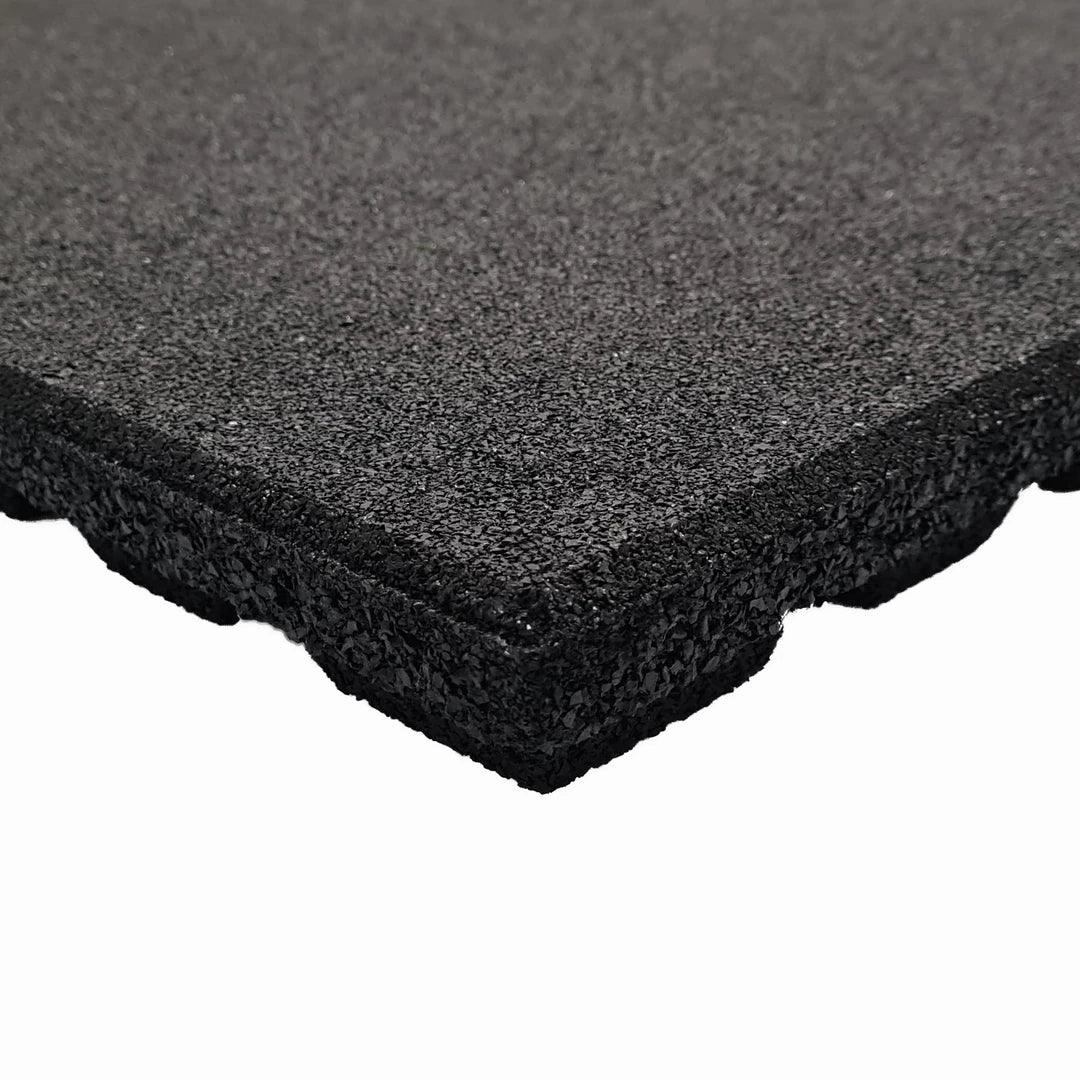

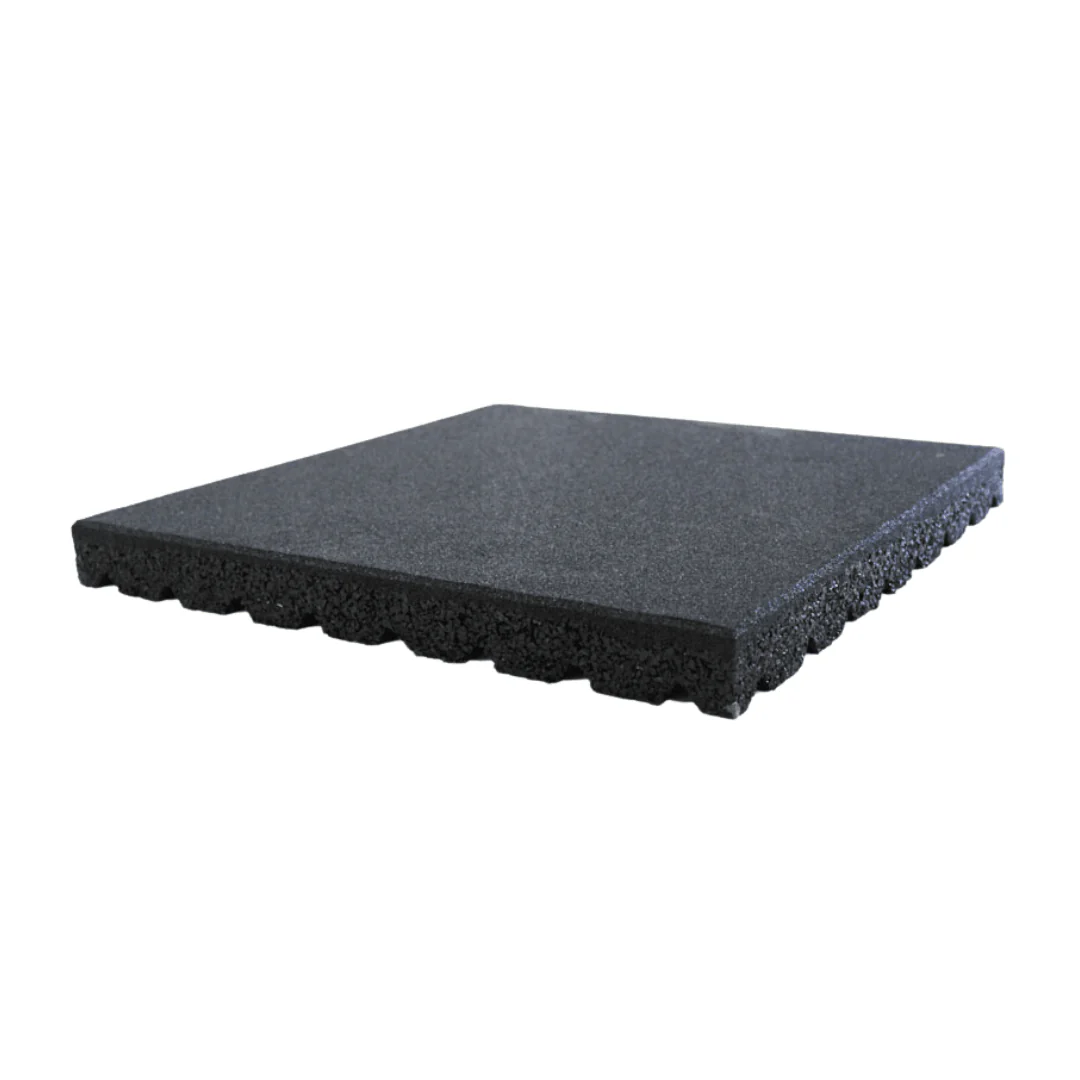

Profile	Bevel Edge with Stud Underside
Maximum Weight Drop	350kg
Applications	Functional Training, Free Weights up to 350kg, Cardio & Strength, CrossFit

Material
Properties	Tough Elastic, High Compression Resistance and Impact Strength
Composition	Recycled SBR Rubber granules from 70% truck tyres, bonded with PU

Technical Specification
Width	+/-2%
Length	+/-2%
Thickness	+/-5%
Dry Conditions	≤ 105PTV \| PN -EN 13036-
Wet Conditions	≤ 75PTV \| 4:2004
Abrasion Resistance, mg	≤ 560 \| PN - EN ISO 5470-1:2001
Tensile Strength, MPA	≥ 0.65
Elongation At Break	≥ 40 \| PN - EN 12230:2005
Hardness	55 up to 75 \| PN - ISO 868 PN-93/C-04206
Density	950 to 1,000kg/m³ \| OTP 1168 PN-EN ISO 845 - 2010
Fire Classification	Efl S1
